All-In-One Solution for Battery Cell
Quality Assurance
The ExaMight System from SAFION uses an innovative real-time EIS process for highly precise and ultra-fast cell evaluation, handling all aspects of battery quality assurance for you.
From incoming inspection, end-of-line testing of cells to interconnection to modules.
- Cylindrical, Prismatic or Pouch
- Precise prediction of battery performance and lifetime in 1 second
- Continuous monitoring of the incoming battery quality
- Real-Time EIS Measurement
- In-Depth battery quality analysis
- Robust design for Production environments
- Measurement of 32 impedance points in 1 second
- Stand-Alone or in-line Test capabilities
Cell Grading
Traditional 1kHz testing is not a reliable method to highlight Cell differences,
it can be a ‘false friend’.
By running real-time electrochemical impedance spectroscopy (EIS) across a frequency range from 1Hz to 10kHz, we can begin to accurately characterise the cell properties under load & generate an ‘electrical fingerprint’ for each cell.
This will allow you to sort your cells more accurately, save time when balancing packs & return sub standard cells to your Suppliers at source.
Click on Graph to see Cell Characterisation

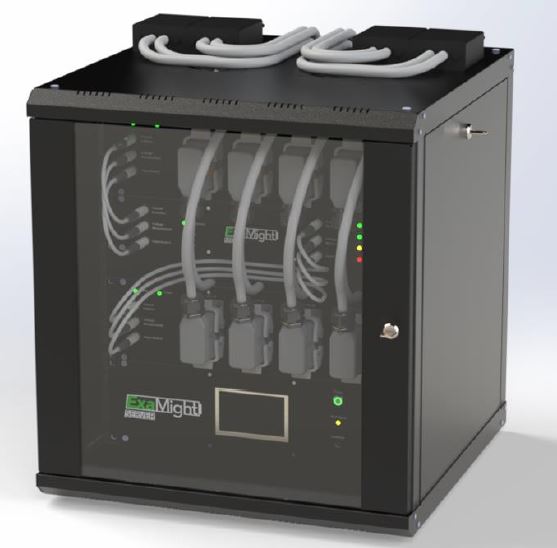

Automated Solutions
19″ Rack-mounted units can be integrated to facilitate In-Line testing solutions:
